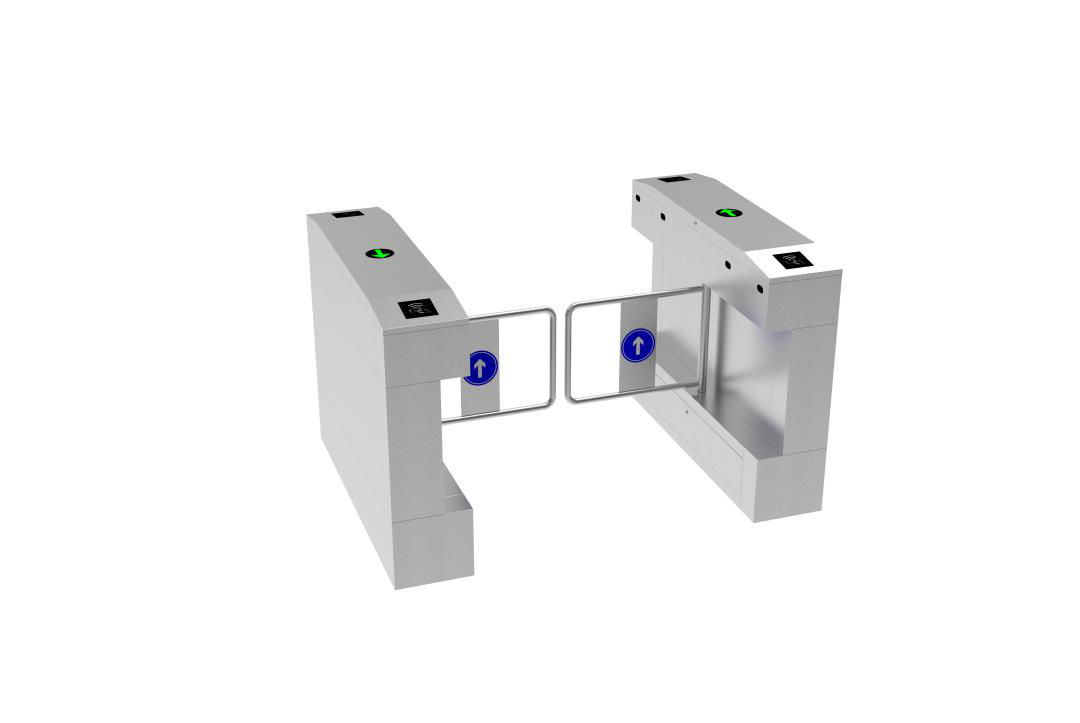

Specification and model: STM02
Product size: 1400mm * 130mm * 980mm Product model: BZ01
Product size: 1200mm * 280mm * 980mm
Structure: Frame structure/Stainless steel shell
Chassis material: Domestic standard 304 stainless steel
Working voltage: AC220 ± 10% V 50 ± 10% HZ
Drive motor: DC brushless motor
Dimensions: 1400 length * 190 width * 980 height (mm)
Arm length: 300-450mm outside the chassis
Swing arm transmission angle: 180 degrees
Swing direction: unidirectional or bidirectional
Working environment: Indoor and outdoor (shade shed) -25 ℃~70 ℃ Relative humidity: ≤ 90%, no condensation
Gate opening and closing time: 1-2 seconds
Traffic speed: 40 people/minute (normally open), 25-30 people/minute (normally closed). Time required to enter traffic mode after power on: 3 seconds
Normal service life: 3 million cycles
Communication interface: Standard RS485 interface, distance ≤ 1200 meters
Input interface: Relay switch signal or 12V level signal or 12V pulse signal with pulse width>100ms, driving current>10mA
